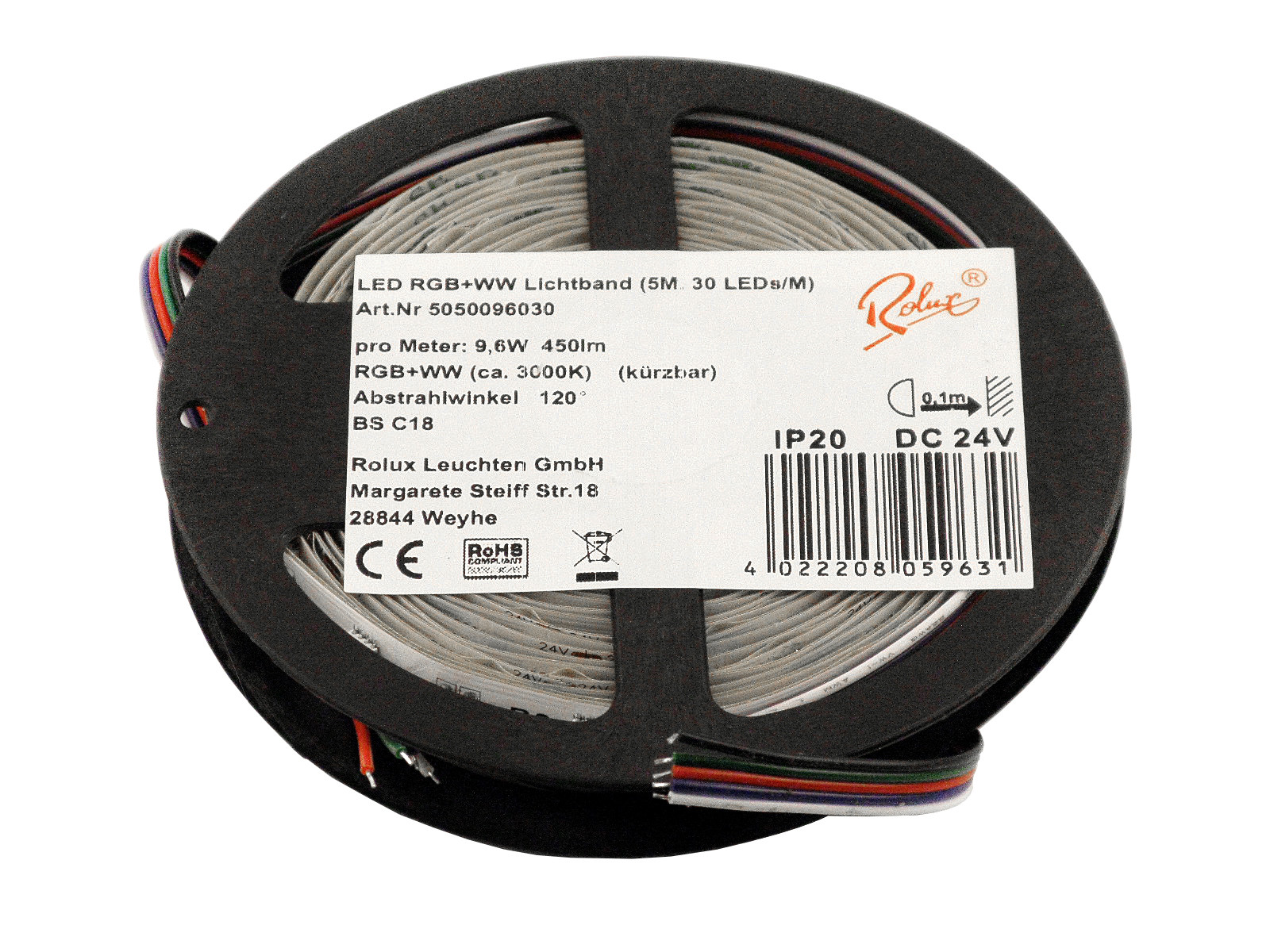

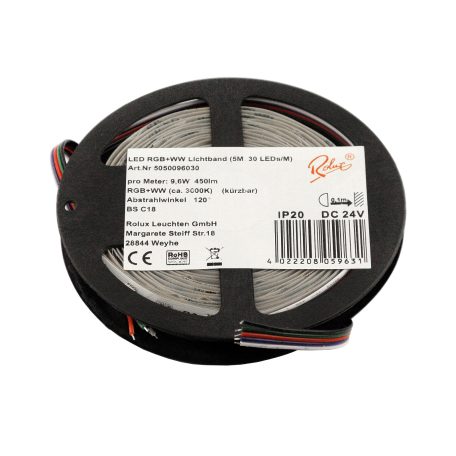

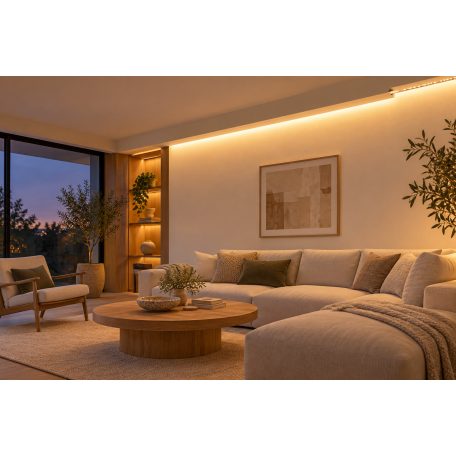

LED Strip, 9.6W/m, 30SMD/M, 24V,IP20,RGB-WW

LED Strip, 9.6W/m, 30SMD/M, 24V,IP20,RGB-WW
LED Strip, 9.6W/m, 30SMD/M, 24V,IP20,RGB-WW
Max. 0.3% light loss after 1,000 operating hours
double-sided copper PCB tape, gold wire connections
silver-coated contacts, lead-free solder
CE and RoHS compliant elements / materials
Heat and UV resistant 3M tape
Operation only with a LED converter 24V DC
Details
In stock
45.01 € + VAT (57.16 €)
Details
PCB: white
Dimmable: yes (PWM Dimmer)
Protection class: III / IP20
Length: 5000mm
Width: 12mm
Height: 2mm
Interfaces: 167mm
SMD distance: 33.33mm
Packing unit: 1 roll
Country of origin: China

TECHNICAL SPECIFICATIONS
Rated voltage: 24V DC
Rated power per meter: 9.6W
Rated power per segment: 1.6W
Color temperature: RGB + WW
Luminous flux:approx. 2250lm
Luminous flux per meter: approx. 450lm
Color rendering index: ≥ 70Ra
Beam angle: 120°
Life at ta 30°C: 40000h
Operating temperature: 0 - 40°Cta
Energy efficiency class: A +
Weighted energy consumption: 48kWh / 1,000h
Info
Manufacturer
LANDLITE
Article No.
R5050096030
