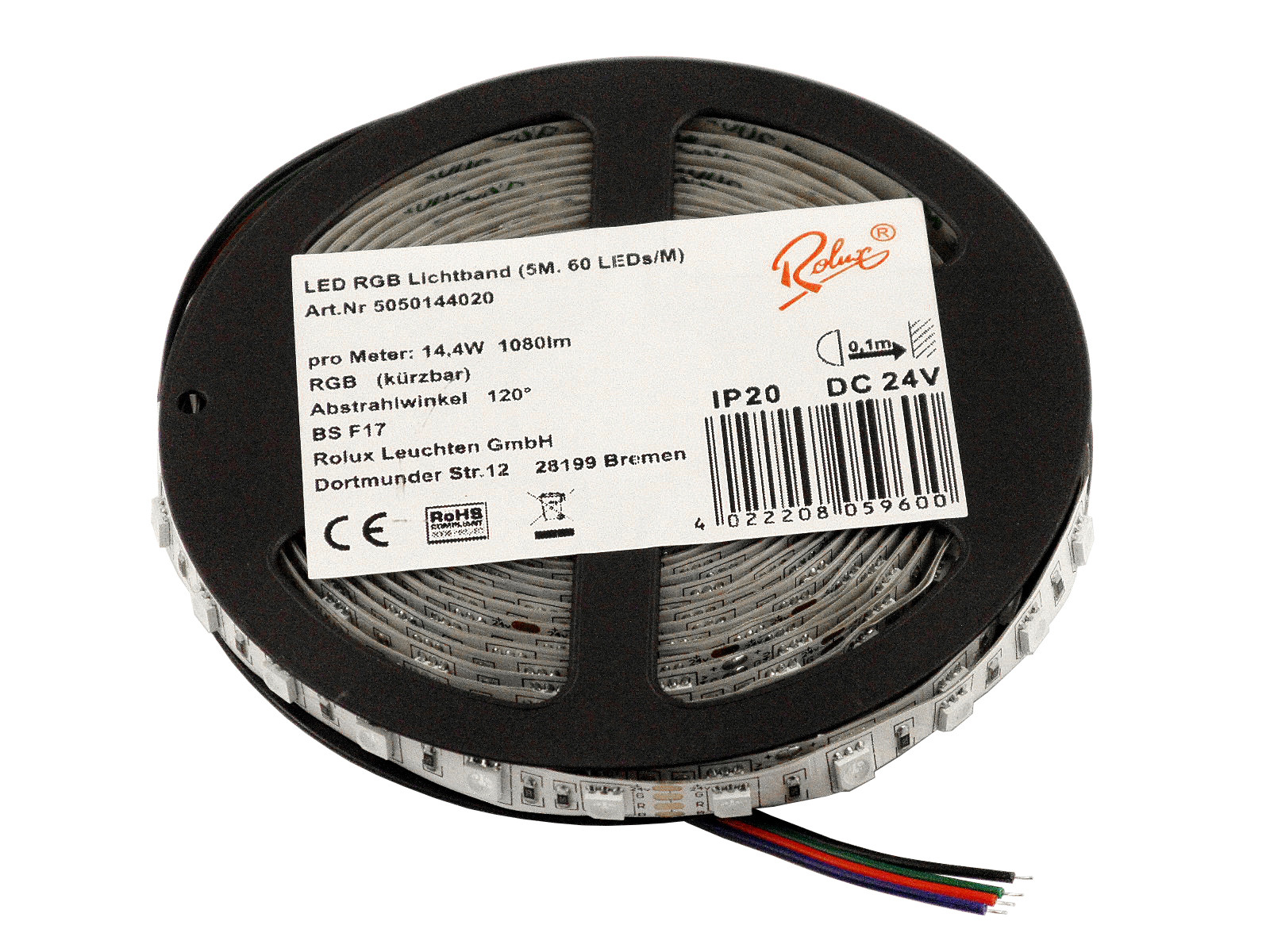

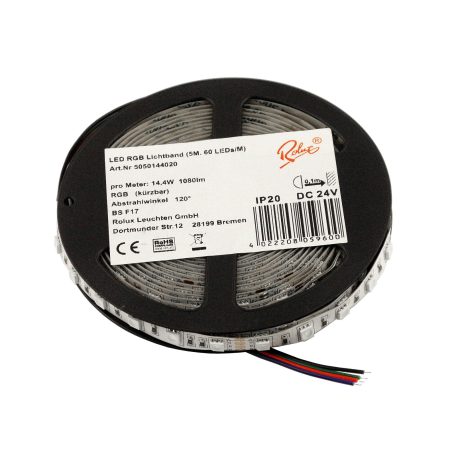

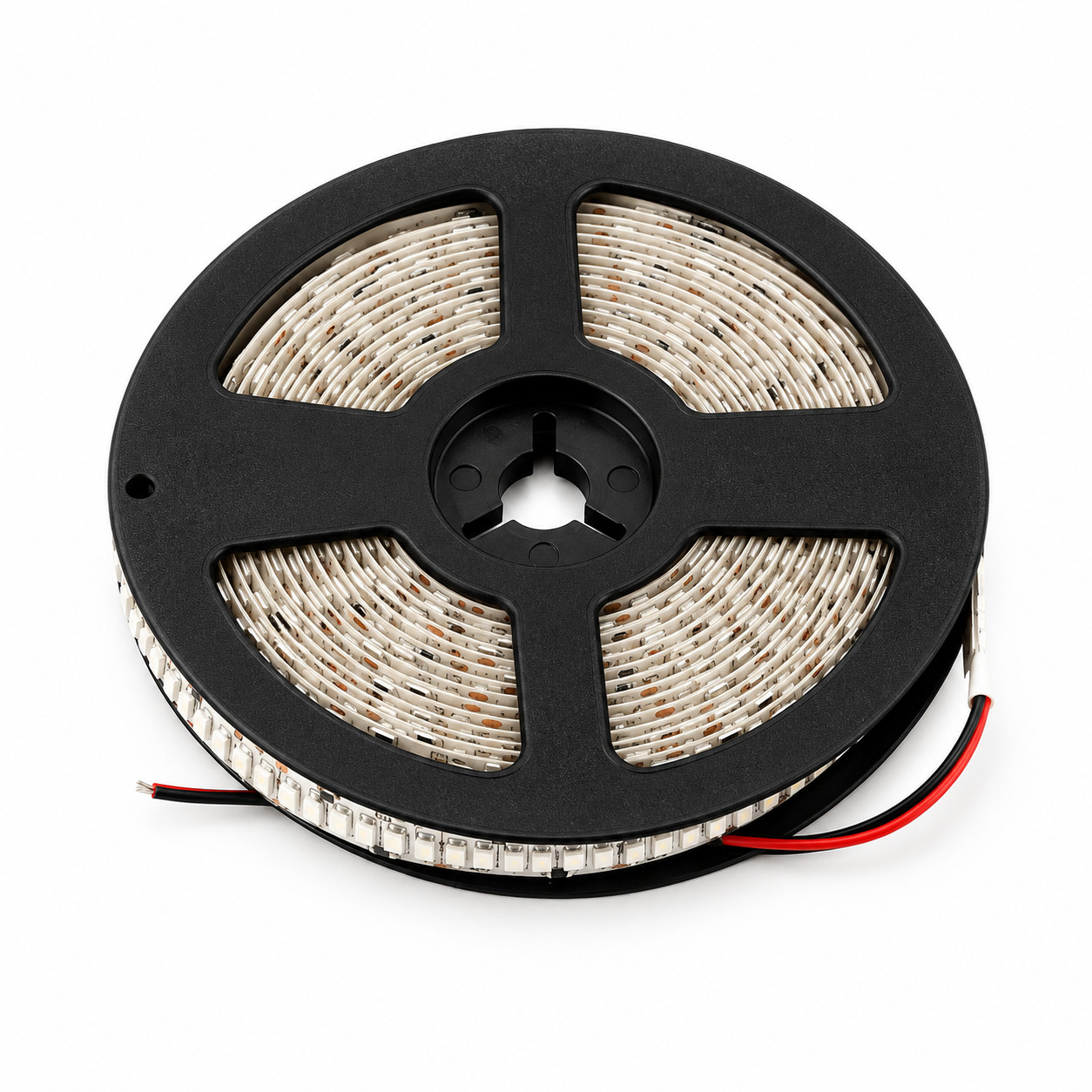

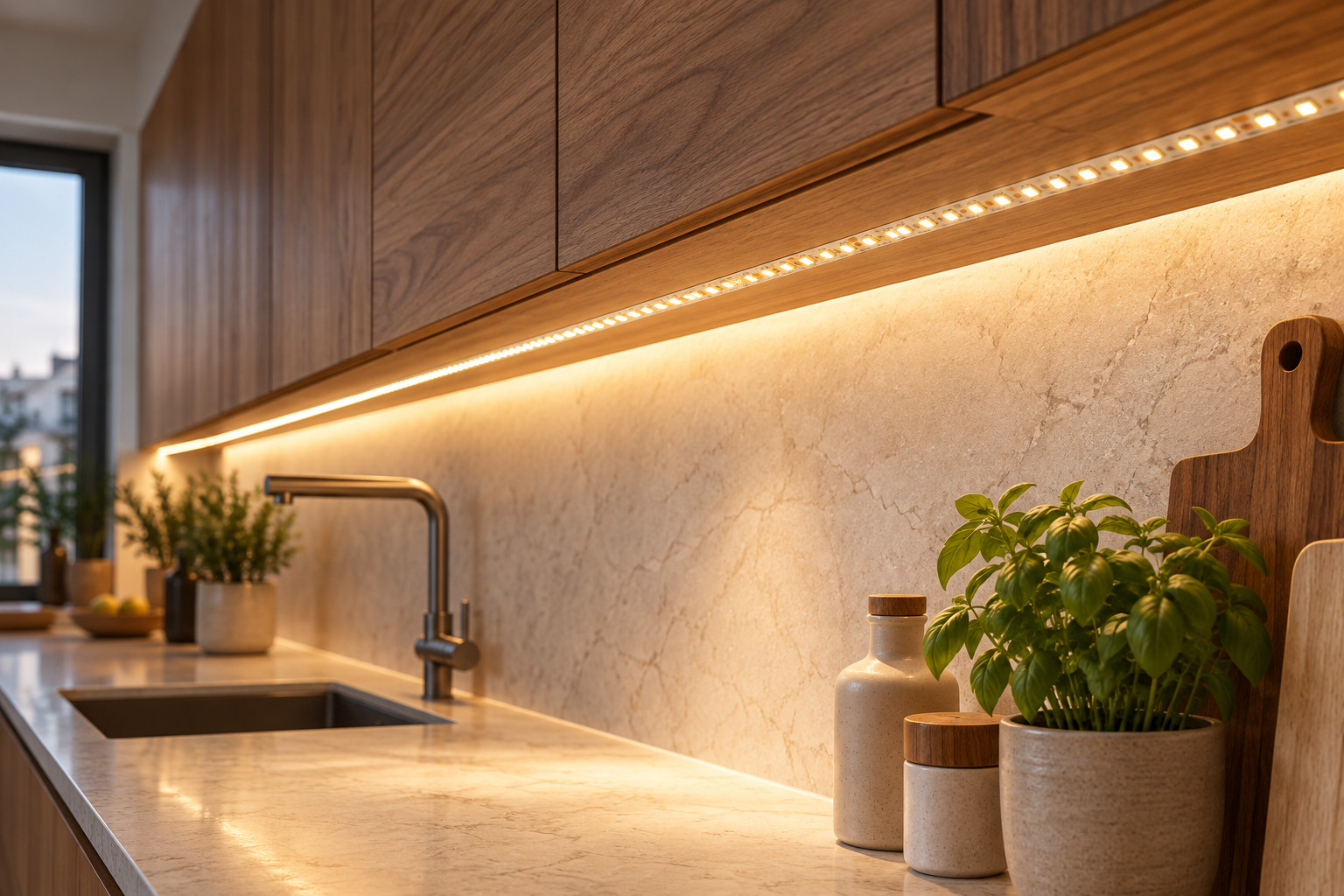

RGB LED Strip 14,4W/m,60SMD/m,24V,IP20

RGB LED Strip 14,4W/m,60SMD/m,24V,IP20
RGB LED Strip 14,4W/m,60SMD/m,24V,IP20
Max. 0.3% light loss after 1,000 operating hours
double-sided copper PCB tape, gold wire connections
silver-coated contacts, lead-free solder
CE and RoHS compliant elements / materials
Heat and UV resistant 3M tape
Operation only with a LED converter 24V DC
Details
In stock
30.25 € + VAT (38.42 €)
Details
PCB: white
Dimmable: yes (PWM Dimmer)
Protection class: III / IP20
Length: 5000mm
Width: 10mm
Height: 2mm
Interfaces: 100mm
SMD distance: 16.67mm
Packing unit: 1 roll
Country of origin: China

TECHNICAL SPECIFICATIONS
Rated voltage: 24V DC
Rated power per meter: 14.4W
Rated power per segment: 1.44W
Color temperature: RGB
Luminous flux:approx. 5400lm
Luminous flux per meter: approx. 1080lm
Color rendering index: ≥ 70Ra
Beam angle: 120°
Life at ta 30°C: 40000h
Operating temperature: 0 - 40°Cta
Energy efficiency class: A +
Weighted energy consumption: 72kWh / 1,000h
Info
Manufacturer
LANDLITE
Article No.
R5050144020
